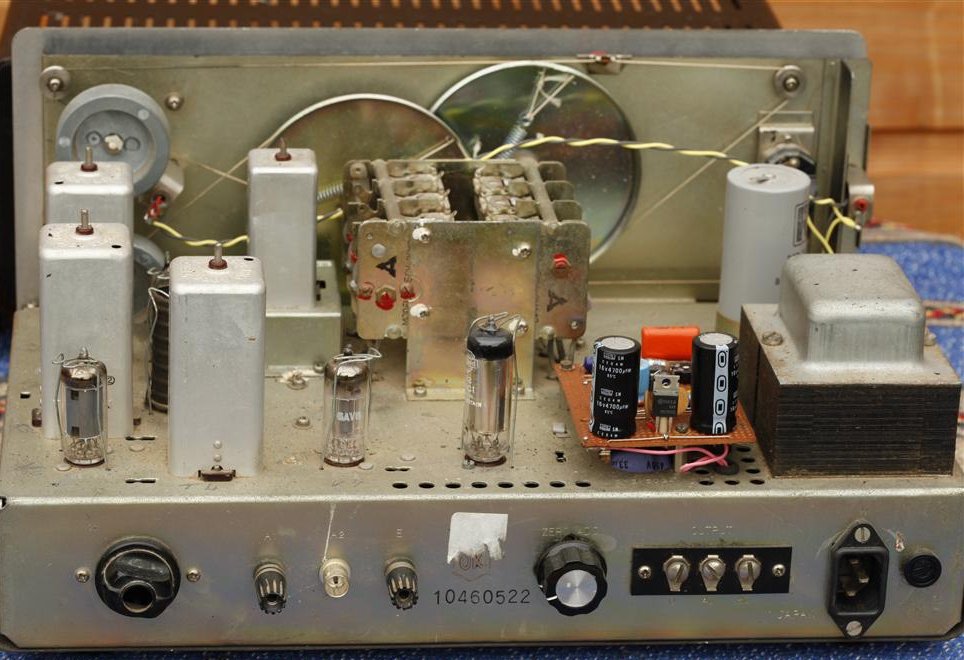

Lafayette KT-320

Type: HF Receiver
Frequency Range: 0.55-30 MHz
Mode: AM/CW
Sensitivity: 1 uV (10 dB S/N)
Selectivity: 4 KHz (-6 dB), 20 KHz (-60 dB) without Q-multiplier
1.6 KHz (-6 dB) with Q-multiplier
Image rejection: N/A
Voltage: Mains
Current Drain: ?
Aerial Input: 50-400 ohms
Dimensions (W*H*D): 15 x 7 x 10"
Weight: 21 lbs
Manufactured: 1961-196x
Other: Kit Form of Ready Built HE-30
